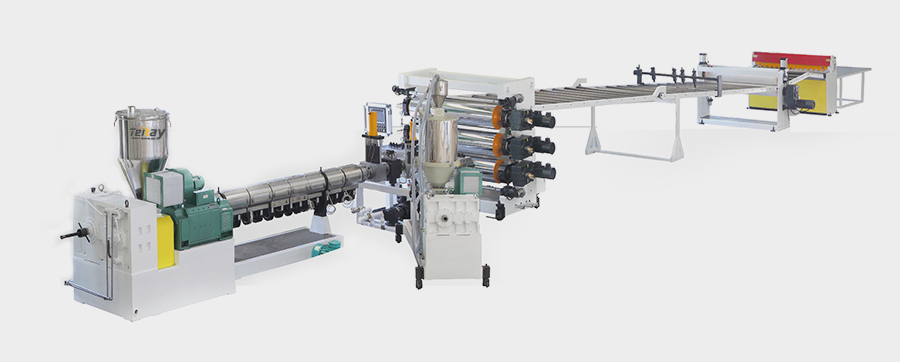

ABS/HIPS/PMMA board production line
ABS/HIPS refrigerator board It is divided into ABS board, ABS fluorine free board, ABS antibacterial board, HIPS board, HIPS high gloss composite board, and HIPS anti 141b composite board. It has excellent properties such as strong low-temperature toughness, impact resistance, and chemical stability. Mainly used for refrigerators, freezers, refrigerator freezer door liners, inner liners, drawers, water trays, water dispensers, etc. | ABS/PMMA composite sanitary ware board It is made by using ABS-PMMA co extrusion composite, which retains the advantages of ABS board impact resistance while also taking into account the surface rigidity and luster of acrylic board. It has good molding, high temperature and low temperature resistance, wear and corrosion resistance, and good mechanical processing performance. Used for bathroom products such as bathtubs, shower rooms, sinks, steam rooms, etc. |
主要技术参数 Main Technical Specification
型号Model | TY-120/60/45-1800 | TY-130/70-2100 |
适用原料 Material | ABS,PS,HIPS,PMMA | ABS,PS,HIPS,PMMA |
挤出机规格 Extruder | Φ120/38,Φ60/35,Φ45/35 | Φ130/38,Φ70/35，Φ60/35 |
共挤分层形式Layer Structure | A/B/A，A/B，B/A | A/B/C/B/A,A/B/C |
制品宽度Width | 1200-1700mm | 1800-2100mm |
制品厚度Thickness | 1-6mm | 1-8mm |
**挤出量Capacity | 550kg/H | 750kg/H |
